• 規格

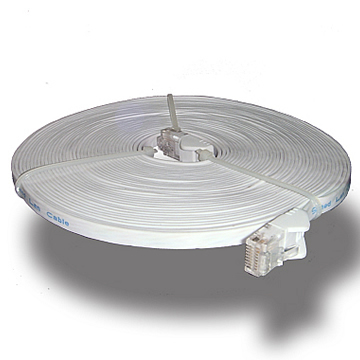

    • 規格:CAT.6 扁平網路線
    • 速度:符合FLUKE CAT 6 測試標準


    特性

    • 導體阻抗:26AWG Less Than 140Ω∕KM
    • 電容:330pf∕100M
    • 特性阻抗:100±15%Ω At 1.0~100.0 MHz
    • 反射損失:22 db At 25.0 MHz;21 db At 31.25 MHz ;18 db At 62.5 MHz;16 db At 100.0 MHz
    • 最大傳播延遲:(ns∕100M)570 At 1.0 MHz;545 At 10.0 MHz;538 At 100.0 MHz
    • 最大傳播延遲差:(ns∕100M)45 At 1.0,10.0&100.0 MHz
    • 衰減:(db∕100M)2.4 db At 1 MHz;7.8 db At 10 MHz;9.9 db At 16 MHz;11.1 db At 20 MHz;12.5 db At 25 MHz;;14.1 db At 31.25 MHz;20.4 db At 62.5 MHz;26.4 db At 100 MHz
    • 串音:62 db At 1 MHz;47 db At 10 MHz;44 db At 16 MHz;42 db At 20 MHz;41 db At 25 MHz;39 db At 31.25 MHz;35 db At 62.5 MHz;32 db At 100 MHz
